Aluminium facades
Aluminium facades built to last and to look good
Aluminium facade panels with Renolit foil. Turner Oak, Anthracite, Corten and many other finishes. Class A1, UV resistant.
STRAMA PANELS Alu Design
STRAMA PANELS Alu Design facade panels bring modern looks to your home
Strama Panels facade panels bring a sense of quality to a building. They give you the natural look of a timber facade board, striking, practical and simple to install. Top-grade materials mean the structure and the colour both last, so your facade keeps its timber appearance for years. A Strama Panels system is a facade you do not have to look after: no more costly, tiresome maintenance.
Choice and appearance. STRAMA PANELS Alu Design panels come in a wide range of colours and patterns, so they can be matched precisely to the style of your house. Because we use the same decorative foil as on window profiles, we can produce a facade in exactly the same finish as your window frames, giving you the elegance of wood with none of the upkeep.
Durability and resistance. The decorative foil (Renolit, Continental, LG) stands up to the weather, so the panels keep their appearance for many years. Anodising the aluminium adds further protection, guarding the facade against corrosion even if the decorative layer is damaged. There is no need to worry about colours fading or about damage from rain, snow or sun.
Easy installation. Alu Design panels are designed to go up simply. Thanks to some clever detailing, fitting them is quick and trouble-free, which saves both time and construction costs.
The environment
Aluminium facades and the environment
Choosing panels with Renolit foil means choosing a product that is kind to the environment. The materials used in production meet environmental standards, so they are safe both for you and for your surroundings.
Low running costs. Alu Design panels need no complicated maintenance. Regular cleaning is enough to keep them looking good, ideal if you value your time.
Installation
How do you install our Alu Design panels?
Installing our panels is quick and straightforward. Watch the detailed guide, which takes you step by step to a perfect facade.
Installation
Installation methods
The panel snaps onto the rail with no wet trades, even in winter. We match the build-up to the building's insulation.
SEMS-LM (EPS insulation)
- 1Building wall
- 2EPS insulation
- 3Mesh + adhesive
- 4Fixing anchor
- 5SEMS-LM mounting rail
- 6Strama Panels panel
SEMS-LM (mineral wool)
- 1Building wall
- 2Mineral wool
- 3Fixing anchor
- 4SEMS-LM mounting rail
- 5Strama Panels panel
SEMS-K bracket fixing (mineral wool)
- 1Building wall
- 2Mineral wool with facing tissue
- 3SEMS-K bracket
- 4SEMS-LMU mounting rail
- 5Strama Panels panel
Specification
Strama aluminium facades, technical specification
We make our anodised aluminium facade panels, foil-wrapped or powder-coated, with precision and attention to every detail. Here are the key figures behind that quality.
In brief
Panel length
Panel width / coverage
Fire class: anodised / foil-wrapped
Specification
Technical specification
- Product
- STRAMA PANELS Alu Design aluminium facade panels
- Index
- SP-AD
- Substrate material
- anodised aluminium
- Face layer
- decorative foil / anodising / paint
- Fixing system
- SEMS-LM / SEMS-LMU
- Panel length
- 2400 mm / 3000 mm*

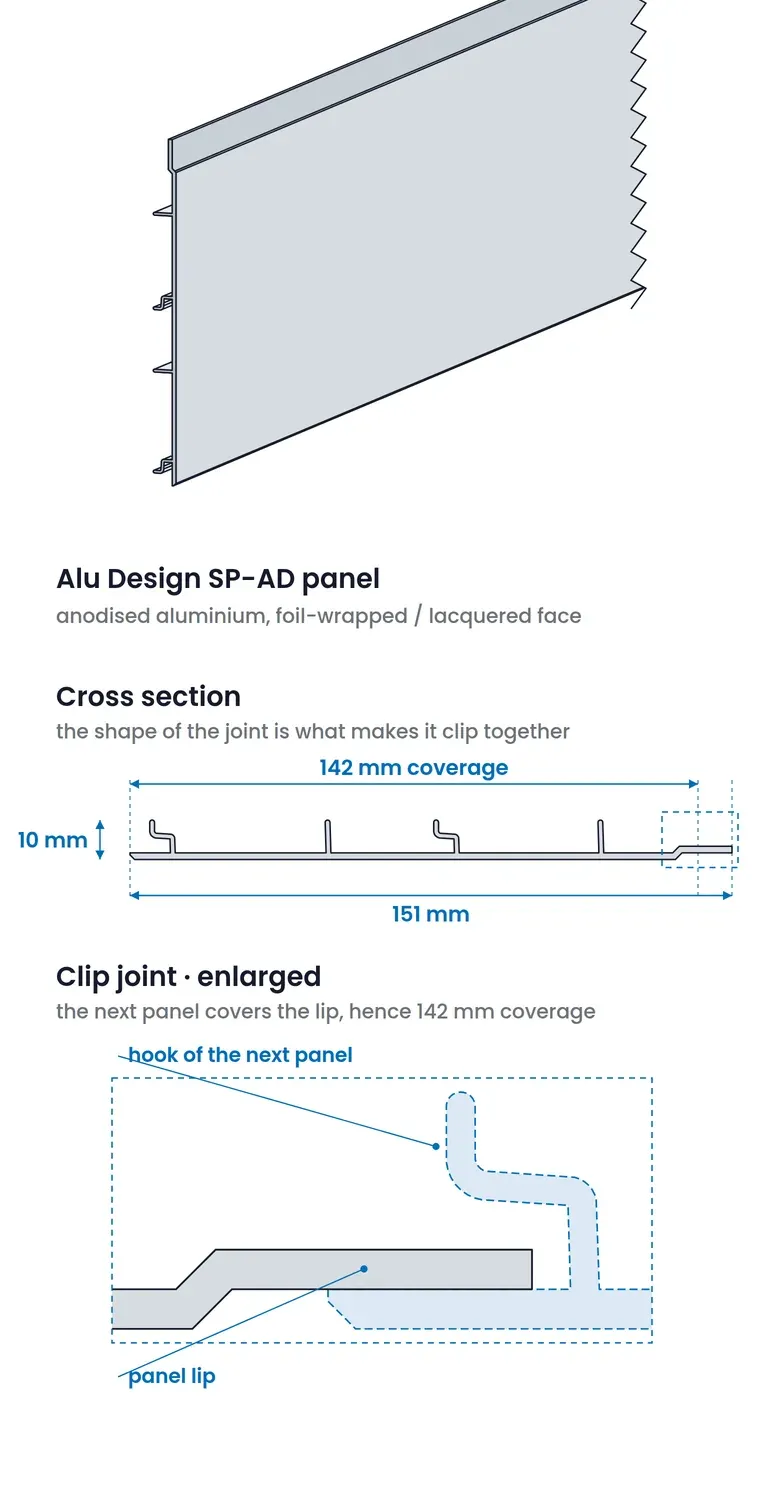

- Panel width / coverage
- 151 mm / 142 mm
- Panel thickness
- 10 mm
- Fixing system depth
- 7 mm / 12.5 mm
- System weight
- 6.0 kg/m²
- Finish
- Top-grade decorative foils (Renolit, Continental, LG), powder coating / sublimation, anodising
- Markings
- ANODISED ALUMINIUM · ANTI-GRAFFITI · RENOLIT
- Certificates
- CE, NRO
- Fire class
- A1 for anodised, B-s2, d0 for decorative foil
- The environment
- A primer-free process using atmospheric plasma; low-emission adhesives
- Application
- Building facades
*Production to a specified length is available to order.
Accessories
System accessories
The mounting rail and trim profiles for the Exterior Design system.
SEMS-LMU mounting rail
load-bearing rail, the panel snaps on · 61 mm high
SEMS-JA aluminium “J” trim profile
start and end of a panel run · 45 × 23.7 mm
SEMS-HA aluminium “H” joining profile
joins two panels in one run · 88.8 × 23.7 mm
SEMS-CA aluminium “K” corner profile
external corner, horizontal installation only · 44.8 × 44.8 mm
Applications
Where are aluminium facade panels used?
Aluminium wall panels work wherever durability, good looks and resistance to the weather matter.
- Detached houses, an aluminium facade gives a house a modern character and keeps moisture out for decades.
- Apartment buildings, aluminium facade panels are an ideal answer when refurbishing semi-detached houses and townhouses.
- Commercial buildings, offices, hotels and retail units gain a professional look with aluminium panels.
- Facade refurbishment, the aluminium facade goes onto battens over the old one: no hacking off render, quick and clean.
Finishes
Patterns and colours for aluminium facades
Our facade panels come in a wide range of patterns and colours. Renolit, Continental and LG foils reproduce wood, stone and metal faithfully.
- Woodec Turner Oak facade board, the most popular oak pattern. A natural look with zero maintenance.
- Anthracite facade panel, the elegance of a dark colour. Ideal for modern houses with plenty of glazing.
- Corten facade, a rust effect. Real industrial character without the drawbacks of corrosion.
- Whites and greys, classic colours for Scandinavian and minimalist buildings.
We also fit facades to order, get in touch to discuss your own project.
We supply panels anodised, powder-coated to any RAL colour, or foil-wrapped in around 100 patterns from the Renolit, LG Hausys and Continental ranges, matching the colours used by window and door manufacturers.
Sample book
Browse the facade finishes
The complete Exterior Design sample book, page by page. You do not have to download anything to see what is available.
1 / 15
On-screen colours are indicative. Before ordering, confirm the finish on a physical sample, we will send one free of charge.
Download the sample book as a PDFAluminium facades on real buildings
Price
Aluminium facade panels, price and quotation
The price of an aluminium facade depends on several things: the pattern you choose, the panel length (2400 or 3000 mm), the foil colour and the quantity of material.
SP-AD panels are an investment that pays for itself over time, no maintenance, painting or treatment costs for the whole of their service life.
What affects the final price?
- Board length: 2400 mm (standard) or 3000 mm (fewer joints)
- Pattern and colour, wood, solid colours, metals
- Order size, discounts on larger quantities
- Installation or delivery, we deliver and train across the country
FAQ
Frequently asked questions, aluminium facades
How much do aluminium facade panels cost?＋
The price depends on the pattern, the length and the quantity. Get in touch for a detailed quotation matched to your project. We deliver nationwide.
What is the difference between a 2400 mm and a 3000 mm panel?＋
A 3000 mm panel has fewer horizontal joints, which looks cleaner and speeds up installation. The 2400 mm panel is standard and often better value. We supply both.
What does installing an aluminium facade involve?＋
A steel or aluminium frame is fixed to the building wall, then the panels snap onto it. The old facade can usually stay where it is. The installation guide is available as a PDF download.
How do aluminium panels differ from plastic (PVC) ones?＋
Aluminium lasts far longer, does not fade, does not crack in frost and is fully recyclable when anodised. Unlike PVC, an aluminium profile does not distort in heat. A fire class of A1, which an anodised profile achieves, is out of reach for plastics.
How long do aluminium facade panels last?＋
Fitted correctly, aluminium panels last for decades with no refurbishment. Renolit foil is certified for resistance to UV and to the weather. This is one of the most durable facade systems on the market.
What are aluminium facade cassettes?＋
Facade cassettes are panels formed as closed boxes, giving the facade a rhythmic texture. They are used mainly in commercial and modernist architecture. Our SP-AD panels can run either horizontally or vertically.
